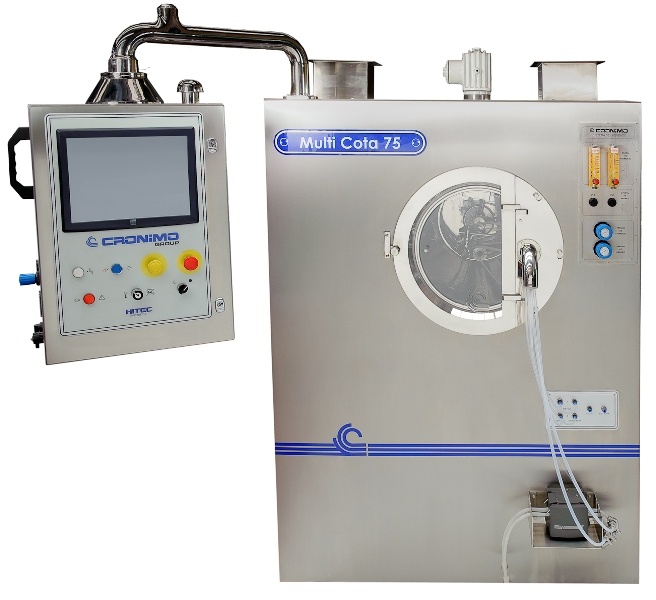

Multi Cota
Film Coating System

Multi Cota

Film Coating System

For fast tablets coating, with fully perforated pans; It allows aqueous and solvent coating.

Multi Cota is manufactured according to GMP guidelines, in compliance with the FPD (Free of Paint Design) concept.

The film coating system is composed by a pan, the air treatment units (inlet and extraction) and the coating kit.

The structure is made in AISI 304 stainless steel. All internal parts are fully welded, making it easy to be cleaned.

The pan is made of fully perforated AISI 316L stainless steel.

Depending on the model, the equipment can be self-contained or with external air treatment units. The extraction system has self-cleaning cartridges.

The coating kit includes a peristaltic pump with variable speed, stainless steel coating guns with quick fittings for the connection with the sterilizable silicone hoses.

Bigger models include a removable arm mounted on a double hinge support, in which the coating guns are fixed. This allows an easy and fast servicing of the guns.

The atomizing air and the fan angle can be adjusted for each gun from outside the pan, through an external control panel. Multi Cota supports from entry-level PLC basic control to a 21 CFR Part. 11 compliant, state-of-the-art control system.

Customer can choose from a wide range of optional extras:

  • WIP – “Wash in Place” system.
  • Cooling system in the injection unit.
  • Humidity measurement and record system.
  • HEPA filter in the injection and/or extraction unit
  • Automatic air flow control
  • Tubular baffles
  • “Rabbit ear” special baffles.
  • Load and discharge system.
  • “In-wall” design.
  • Extraction noise silencer.
  • FAT, SAT, IQ/OQ documentation.

Depending on the working volume, Cronimo offers the following models:

Working volume
5 60 150 400 600 800 1000 Model
2 a 60 90 200 400 600 800 1000 Litres

Multi Cota Multi Cota
