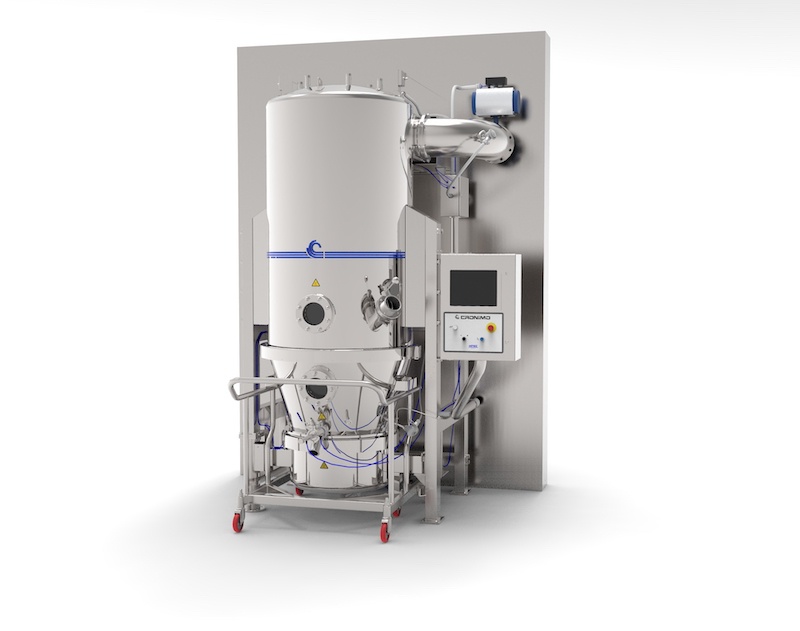

Fluid Bed Dryer


Fluid Bed Dryer

CroDryer ensures a fast, uniform and highly efficient drying process. It is suitable for drying wet granules as well as for powder granulation by “top spray” system.

It is built according to GMP guidelines, in compliance with the FPD (Free of Paint Design) concept and its structure is made in AISI 304 stainless steel.

The container and the expansion chamber are fully manufactured in AISI 316L stainless steel.

Different filtering systems can be provided.

CroDryer supports from entry-level PLC basic control to a 21 CFR Part. 11 compliant, state-of-the-art control system.

Customer can choose from a wide range of optional extras.
  • WIP – “Wash in Place” system.
  • Cooling system in the injection unit.
  • Humidity measurement and record system.
  • HEPA filter in the injection and/or extraction unit
  • Automatic air flow control
  • Increased safety.
  • Direct loading
  • FAT, SAT, IQ/OQ documentation.

Depending on the working volume, Cronimo offers the following models:

Working volume
5 15 30 40 75 150 200 250 300 Units
10 20 65 100 230 390 600 770 1250 Litres

CroDryer CroDryer CroDryer
